• ✓ Brand-new complete in-tank fuel-pump assembly.
• ✓ Suitable for selected Great Wall Cannon and GWM Ute models.
• ✓ Designed for the 2.0L GW4D20M turbo-diesel engine.
• ✓ Suitable for selected RWD and AWD applications.
• ✓ 12-volt electrical fuel-pump system.
• ✓ Includes an integrated fuel-level sender and float arm.
• ✓ Replaces part number 1123101XPW01A.
• ✓ Reference number 28629076.
• ✓ Three-year unlimited kilometre product warranty.
• ✓ Free express postage Australia-wide.

This GW4D20M Fuel Pump is intended for vehicles fitted with the 1996cc 2.0L four-cylinder turbo-diesel engine. Compatible applications may include selected Cannon cab-chassis, utility, two-wheel-drive and four-wheel-drive models.

The official GWM Cannon specifications identify the GW4D20M as the 1996cc 2.0L diesel engine and the GW4D24 as the separate 2370cc 2.4L diesel engine.

Great Wall Cannon vehicles can use different fuel-pump assemblies depending on the engine, production date, drivetrain and vehicle specification. For the safest fitment, remove or inspect the original pump and confirm that its number matches 1123101XPW01A or reference number 28629076.

Buyers should also compare the following details with their existing unit:

• ✓ Electrical connector shape and pin arrangement.
• ✓ Fuel-line connection positions.

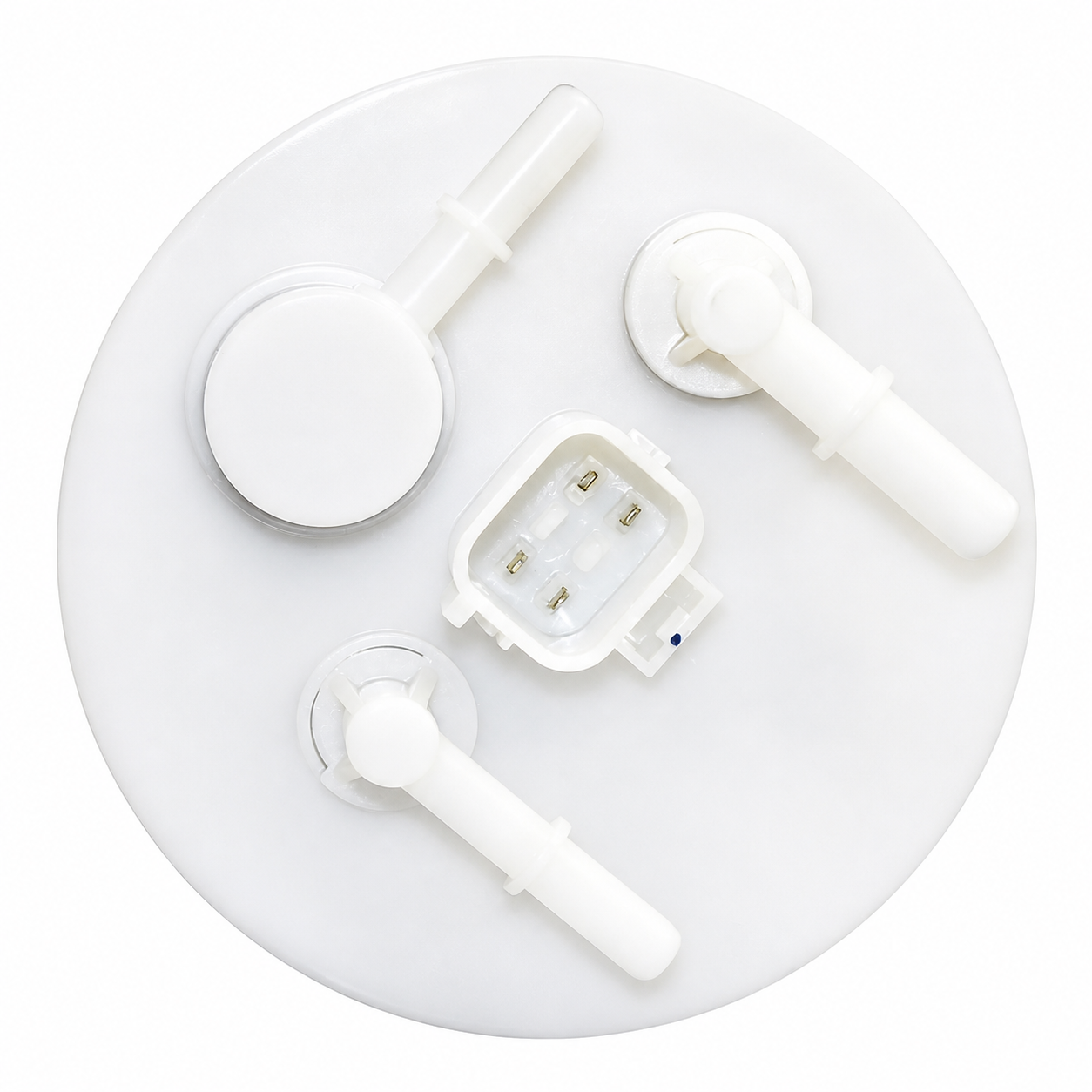

• ✓ Top mounting-plate design.
• ✓ Fuel-level sender and float-arm direction.
• ✓ Overall pump height and housing shape.

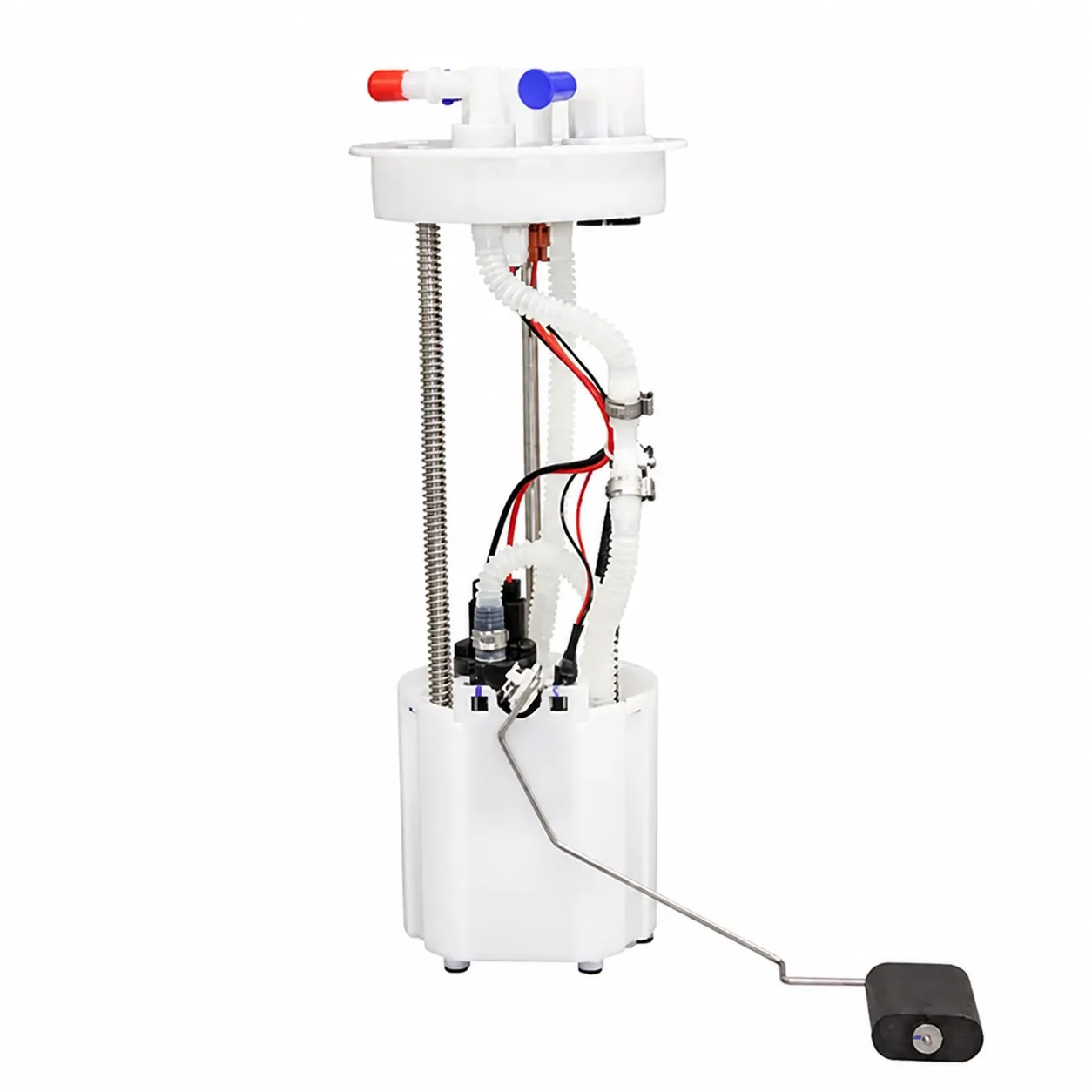

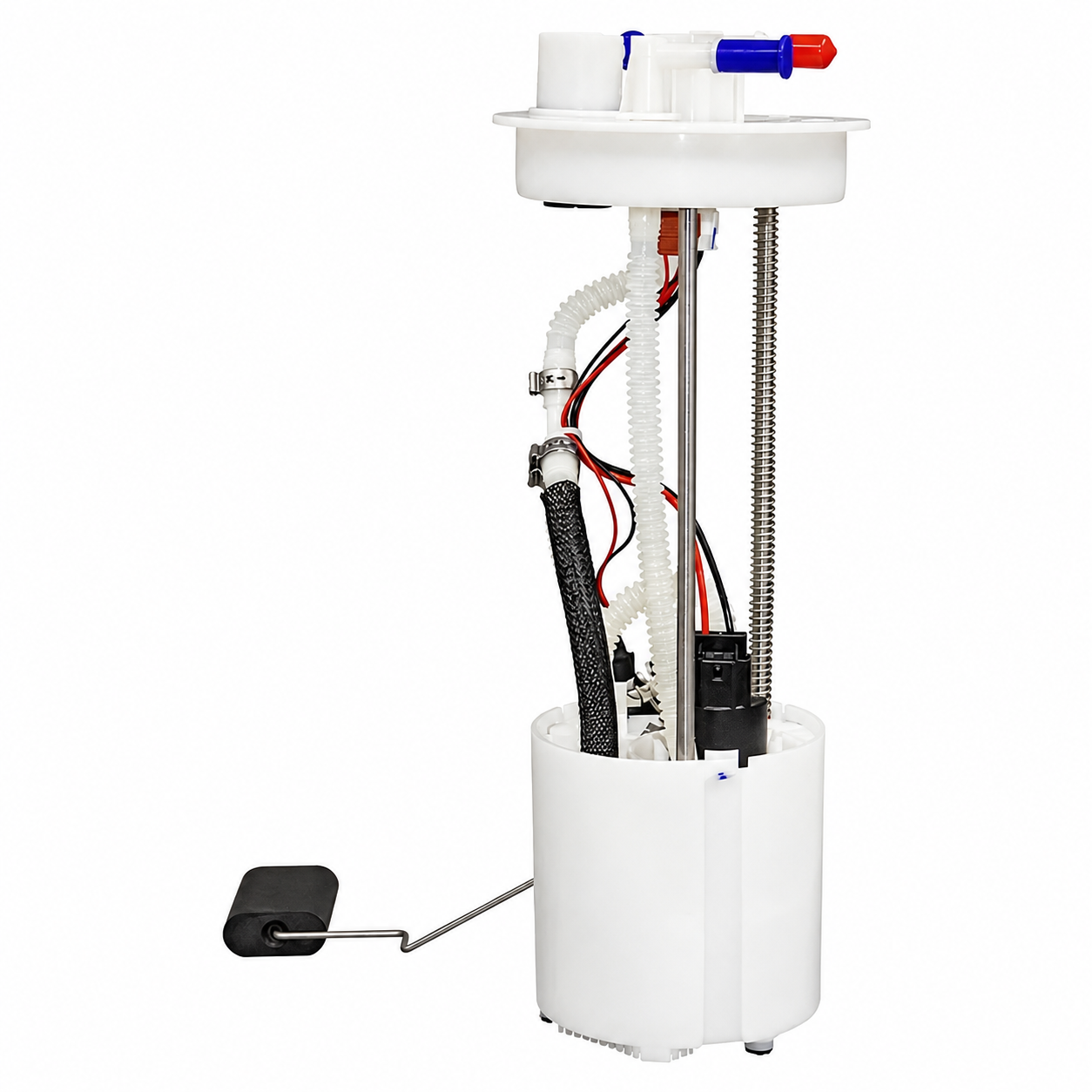

This Cannon Fuel Pump is supplied as the complete assembly shown in the product photographs. The integrated design avoids the need to transfer the internal pump motor or fuel-level sender from the old unit. Vehicle-specific seals or fittings should only be reused when instructed by the installer and when they remain in serviceable condition.

A properly operating fuel pump supplies diesel from the tank to the engine at the required flow and pressure. A worn or failing pump can contribute to difficult starting, engine hesitation, reduced power, irregular fuel delivery or unexpected stalling.

This product is a Parts Factory Australia aftermarket replacement manufactured to meet OEM-equivalent fitment and operating requirements. It is not represented as a genuine Great Wall or GWM-branded component.

The assembly uses durable electrical, plastic and metal components intended for normal Australian driving conditions. Every application is checked against the nominated part number and vehicle information before dispatch.

Fuel-pump replacement requires access to the vehicle’s fuel tank and electrical system. Installation should be completed by a qualified mechanic or an experienced person using appropriate safety equipment.

The vehicle battery should be disconnected and the fuel system depressurised before the original assembly is removed. The fuel tank and surrounding area must be kept clean to prevent dirt or contamination from entering the system. All electrical connections, fuel lines and seals must be checked before the vehicle is started.

This Great Wall Cannon fuel pump is supplied with Parts Factory Australia’s three-year unlimited kilometre warranty against manufacturing defects under normal use. Warranty assistance is handled locally by our Australian customer-support team.

Free express postage is included Australia-wide. Orders completed before 2PM are generally dispatched the same business day, with most metropolitan deliveries arriving within two to three business days.

Browse our complete range of Fuel Pumps and Parts for additional vehicle applications.

Does this fuel pump suit every Great Wall Cannon?

No. It is intended for selected Cannon and GWM Ute models fitted with the 2.0L GW4D20M diesel engine. It does not suit models fitted with the 2.4L GW4D24 engine.

Does it suit both RWD and AWD models?

Selected RWD and AWD applications are covered when the vehicle uses the GW4D20M engine and the original pump number matches 1123101XPW01A or 28629076.

Is the fuel-level sender included?

Yes. The product is supplied as the complete fuel-pump assembly shown in the photographs, including the sender and float arm.

Is this a genuine GWM component?

No. This is a brand-new Parts Factory Australia aftermarket replacement designed to match the listed original application and part numbers.

Does the Cannon Fuel Pump include a warranty?

Yes. It is backed by a three-year unlimited kilometre warranty covering manufacturing defects under normal use and correct installation.

What should I check before ordering?

Confirm the GW4D20M engine code, original part number, electrical connector, fuel-line connections and mounting design. Contact Parts Factory Australia if you require assistance confirming fitment.
