Quick answer: A Touareg park brake malfunction almost always traces back to a worn or seized rear park brake actuator motor. Fitting a replacement Touareg electronic park brake actuator and recalibrating the system with a scan tool is the standard fix.
What Causes a Touareg Park Brake Malfunction?
The Volkswagen Touareg (7P series, 2011–2016) uses an electric motor mounted on each rear caliper backing plate to clamp and release the park brake shoes. Each actuator contains a small plastic gear train that drives a spindle against the brake shoes. Two failure paths are common on these vehicles:
- The internal gear teeth wear down or strip after repeated clamp cycles, so the motor spins without moving the spindle.
- Moisture and brake dust get past the actuator seal and corrode the motor windings or internal wiring, causing the control module to see an electrical fault.
Because the park brake module treats both rear actuators as a matched pair, a single failed motor is usually enough to disable the whole system as a safety precaution.
Symptoms of a Failing Touareg Park Brake Actuator
- A “Parking Brake Fault” or “Parking Brake Malfunction” message appears on the instrument cluster
- The park brake switch flashes, or the brake stays applied and will not release
- Grinding, whirring or clicking noises from a rear wheel when applying or releasing the brake
- The vehicle rolls on a slope because the brake is only holding on one side
- A scan tool reads a fault code stored against a rear handbrake motor circuit

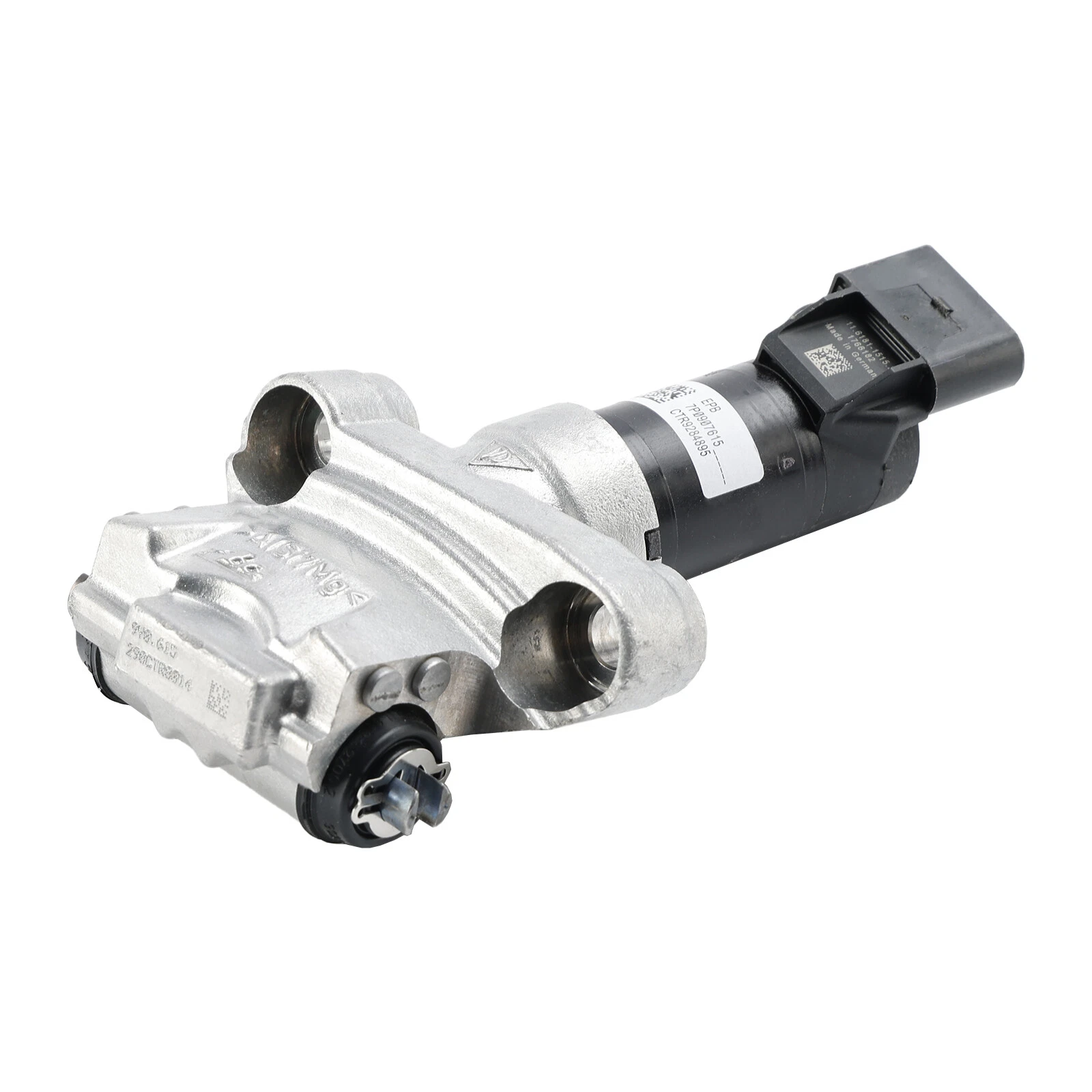

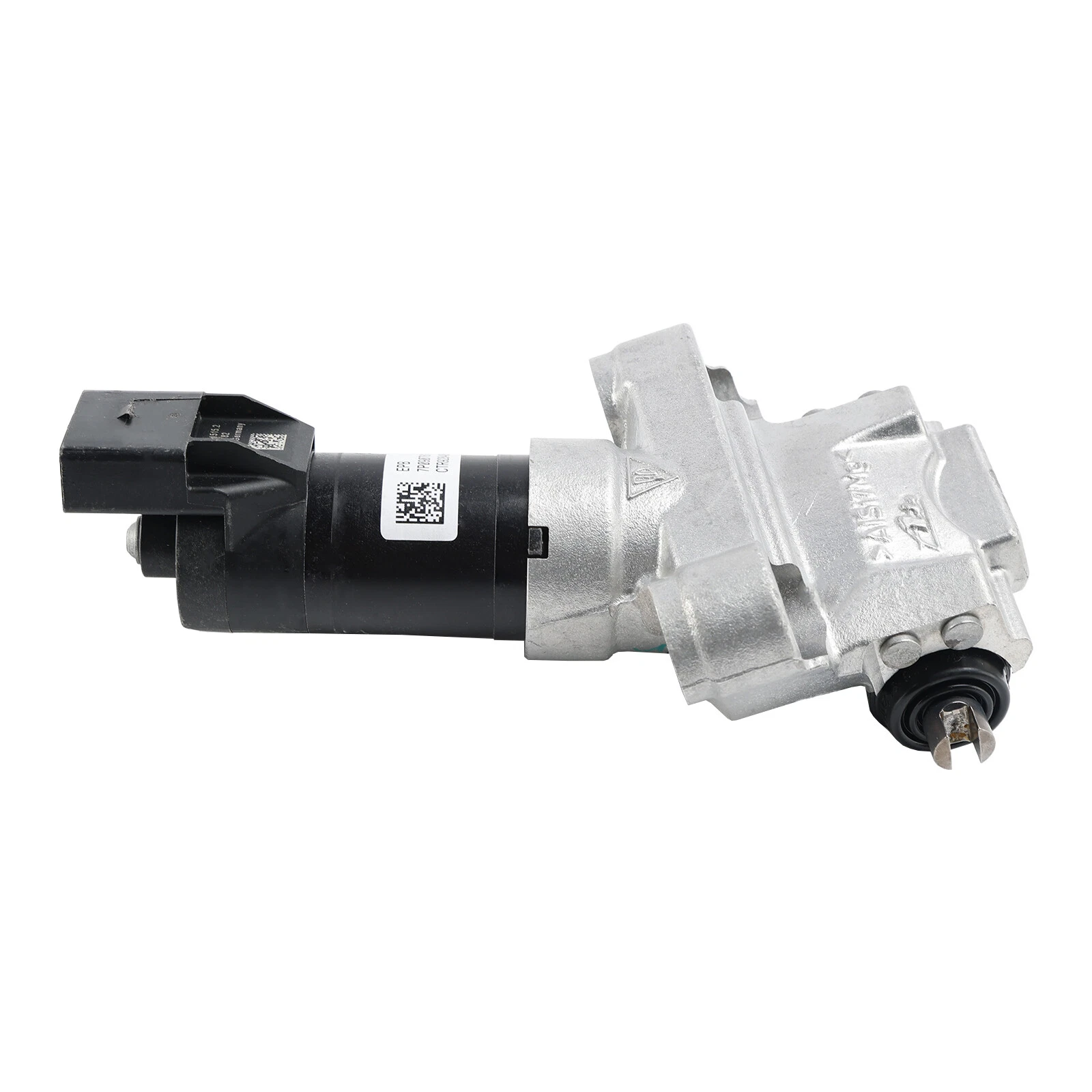

Touareg Park Brake Actuator Fitment
| Make | Volkswagen |
| Model | Touareg |
| Series | 7P (7P5 / 7P6) |
| Years | 2011–2016 |
| Position | Rear – left, right or pair |
| OE part numbers | 7P0609615 (LH) / 7P0609616 (RH) |
| Voltage | 12V |
| Warranty | 3 years, unlimited km |
How to Fix a Touareg Park Brake Malfunction
Clearing a Touareg park brake malfunction properly takes three stages, and skipping any one of them will leave the fault active:
- Enter service mode. Before any rear brake component is touched, the park brake must be put into service/maintenance mode with a VCDS or equivalent diagnostic scan tool so the actuator spindles wind back and the brakes can be safely dismantled.
- Replace the actuator. Unbolt the failed motor from the backing plate and fit the new Touareg park brake actuator, reconnecting the wiring plug securely.
- Recalibrate. Exit service mode and run the park brake calibration routine so the module learns the new actuator’s clamp position. No coding or module programming is required.
Should You Replace Both Touareg Park Brake Actuators?
Both rear actuators do identical work over the same mileage, so when one strips its gears the other is usually close behind it. Since the rear brakes already need to come apart to fit one actuator, replacing both at the same time avoids paying for a second teardown a few months later. Most workshops recommend the pair option for exactly this reason.
Touareg Park Brake Malfunction FAQs
Will this actuator fit my Touareg?
It suits 7P series Touareg models built between 2011 and 2016. Confirm fitment by checking the part number stamped on your existing actuator against the OE numbers above, or provide your VIN for a fitment check.
Which side do I need to replace?
If the fault is only present on one side, that side’s actuator can be replaced on its own. If you are unsure which side has failed, the pair option covers both and costs less than buying two individually.
Is this a genuine Volkswagen part?
No, it’s an aftermarket OEM-equivalent actuator engineered to match the factory motor’s clamping force and fitment, at a lower price than a dealer part.
Do I need to code the new actuator?
No coding is needed. A scan tool is only required to put the park brake into service mode before fitting and to run the calibration afterwards.
Should I replace the park brake shoes at the same time?
It’s worth inspecting them. Worn or seized shoes make the actuator work harder than it was designed to, which is a common reason a freshly replaced motor fails again early.
A Touareg park brake malfunction is inconvenient, but it’s a straightforward repair once the failed actuator is identified. Browse the VW Touareg electronic park brake actuator at Parts Factory Australia for same-day dispatch and a 3-year unlimited-kilometre warranty.
